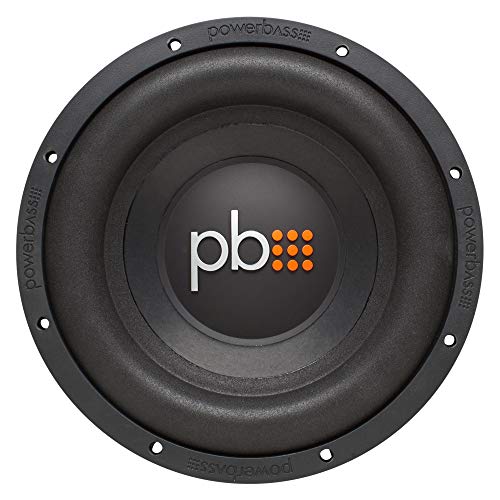

PowerBass S 1004D 10 Inch Dual 4 Ohm Subwoofer for Deep Powerful Bass

Description

This 10-inch dual 4-ohm subwoofer is built for car audio systems that need flexible wiring options and steady low-frequency performance. With a power rating of 275 watts RMS and 550 watts maximum, it is important to use the RMS figure as the primary reference when pairing the driver with an amplifier. That helps ensure the system is matched for consistent output rather than short bursts of power.

The dual 4-ohm voice coils add versatility during installation. Wired in series, the subwoofer presents an 8-ohm load; wired in parallel, it creates a 2-ohm load. This makes it easier to adapt the driver to different amplifier requirements, but it also means the amplifier’s minimum supported impedance should be checked before wiring. A proper match between the amplifier and subwoofer impedance is essential for reliable operation and balanced system performance.

At the core of the driver is a proprietary DDC-coated paper-and-wool cone. This cone material is selected to combine strength with controlled movement, while the coating contributes to the overall construction of the moving surface. Supporting the assembly is a 2-inch vented BASV voice coil former, designed to help manage the voice coil during use and support stable performance under load. These construction details are useful when comparing subwoofer designs, especially for builders who want to understand how materials and structure influence the system.

The subwoofer is suited to either a small sealed enclosure or a ported enclosure, depending on the goals of the installation. A sealed box is often a practical choice when space is limited and a compact footprint is needed. A ported enclosure can provide different low-end characteristics, but it requires close attention to box volume and tuning. In either case, following the manufacturer’s enclosure recommendations and accounting for mounting depth and internal volume will help ensure a proper fit.

As with any car subwoofer, the final result depends on more than the driver alone. Amplifier selection, enclosure design, installation quality, and tuning all play a role in the sound you hear. For anyone planning an upgrade or building a new car audio setup, this 10-inch dual 4-ohm subwoofer offers a flexible foundation. Reviewing your available space, amplifier capabilities, and enclosure options is a practical way to decide whether a sealed or ported configuration best suits your system.
